Median Plantation

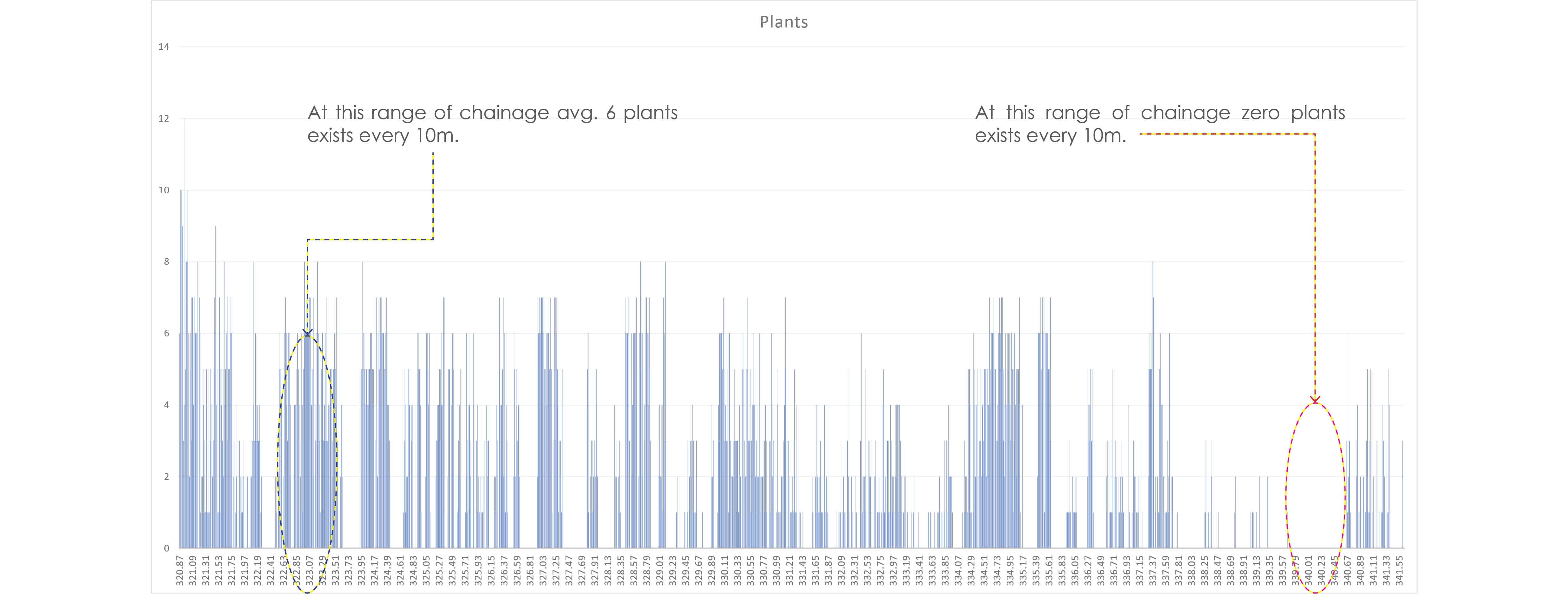

This is a simple representation of the linear median plantation data. The X-axis represents chainage at every 10m & Y-axis represents the number of plants per 10m. The below graph represents the 9km data for median plantation.
![](/lidartech_theme_indi/static/src/img/roads/image4.jpg)
MCW Width

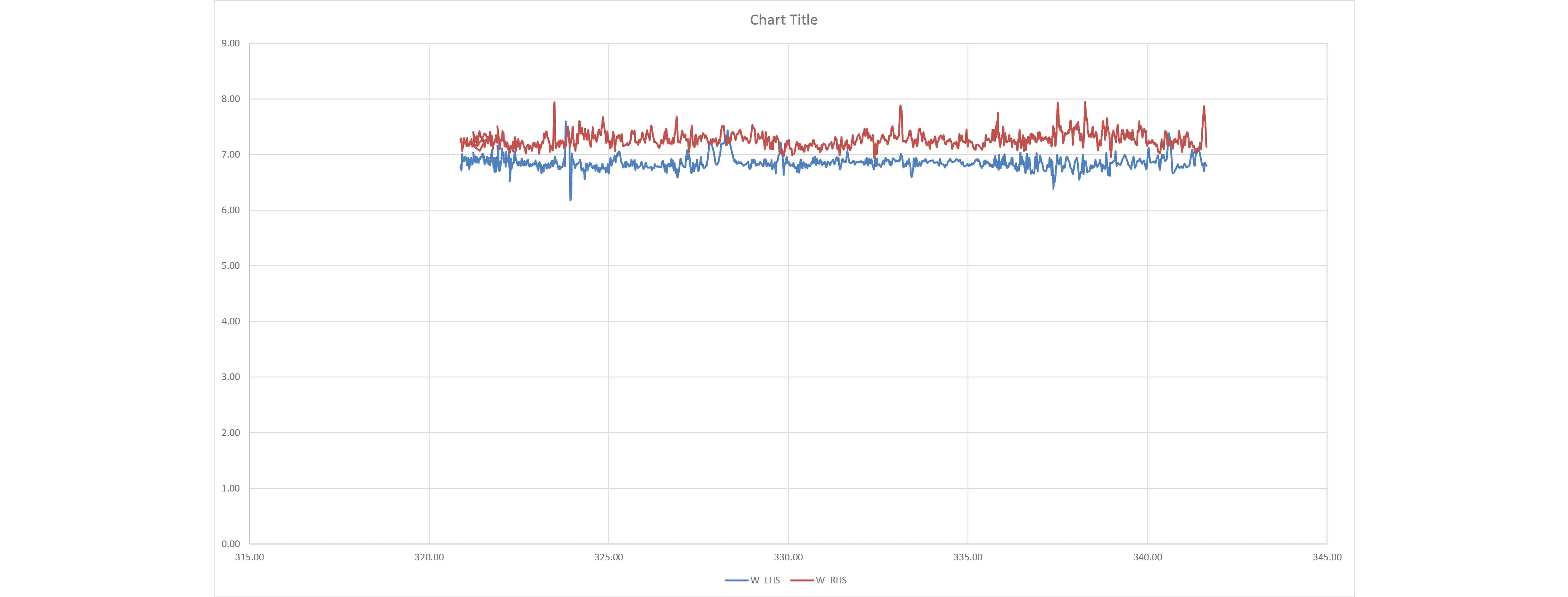

This graph represents the width of the Main Carriage Way for LHS & RHS respectively. The X-axis represents the Chainage @ 10m & Y-axis represents the width of MCW. Blueline represents the LHS & Red represents RHS.
![](/lidartech_theme_indi/static/src/img/roads/image5.jpg)
Service Road
This graph represents the provision of the service road in the 9Km stretch. The X-axis represents the Chainage @ 10m & Y-axis represents the width of Service Road. This also represents the service road provided at the given chainage. Blueline represents the LHS & Red represents RHS.
![](/lidartech_theme_indi/static/src/img/roads/image6.jpg)
Stone Pitching

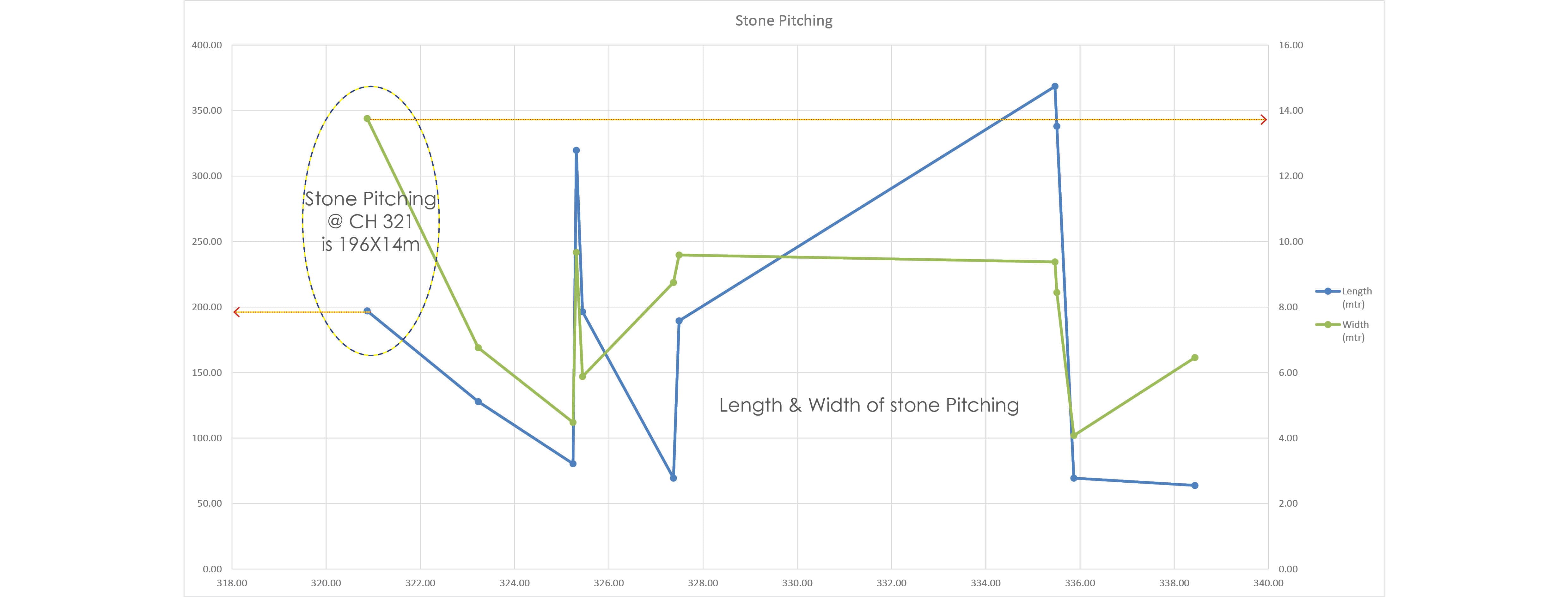

This graph represents the existing stone pitching alongside the road. The X-axis represents the Chainage @ 10m & dual Y-axis represents the length and width of the pitching respectively.
![](/lidartech_theme_indi/static/src/img/roads/image7.jpg)
